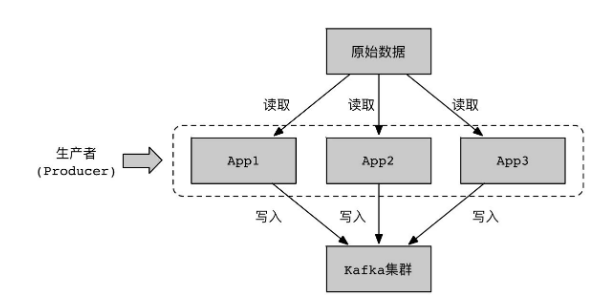

生产者在业务中实时读取原始数据进行业务逻辑处理，然后调用Kafka的生产者接口将处理后的消息记录写入到Kafa集群中。

kafka-producer-process

使用脚本操作生产者

生产者发布消息

1
./kafka-console-producer.sh --broker-list broker_name:port --topic topic_name

消费者查看消息

1
./kafka-console-consumer.sh --broker-list broker_name:port --topic topic_name

使用Java API操作生产者

导入依赖

1
2
3
4
5
<dependency>
    <groupId>org.apache.kafka</groupId>
    <artifactId>kafka-clients</artifactId>
    <version>2.6.0</version>
</dependency>

使用生产者API

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
import org.apache.kafka.clients.producer.KafkaProducer;
import org.apache.kafka.clients.producer.Producer;
import org.apache.kafka.clients.producer.ProducerRecord;

import java.util.Properties;

public class KafkaProducerDemo {
    public static void main(String[] args) {
        //创建并写入客户端配置
        Properties props = new Properties();
        //Kafka 集群地址合集
        props.put("bootstrap.servers", "localhost:9092");
        //对kafka节点应答的要求，0为不要求应答，1为需要一个节点应答，all为需要全部节点应答
        props.put("acks", "all");
        //发送失败重试次数
        props.put("retries", 0);
        //批处理量，减少请求次数
        props.put("batch.size", 16384);
        //增加延时，减少请求次数
        props.put("linger.ms", 1);
        //Producer可缓存数据的大小
        props.put("buffer.memory", 33554432);
        //key与value的序列化方式，用于实现Serializer接口
        props.put("key.serializer", "org.apache.kafka.common.serialization.StringSerializer");
        props.put("value.serializer", "org.apache.kafka.common.serialization.StringSerializer");

        //根据配置创建producer
        Producer<String, String> producer = new KafkaProducer<String, String>(props);
        for (int i = 0; i < 100; i++) {
            //创建并发送record
            producer.send(new ProducerRecord<String, String>("my-topic", Integer.toString(i), Integer.toString(i))); //topic, key, value
        }

        producer.close();//关闭producer
    }
}

多线程调用生产者API

由于Kafka的生产者对象是线程安全的，可以由多个线程调用Kafka生产者对象。

创建生产线程

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
package kafka.producer;

import org.apache.kafka.clients.producer.KafkaProducer;
import org.apache.kafka.clients.producer.ProducerRecord;

/**
 * 生产者线程
 */
public class ProducerThread implements Runnable {

    private KafkaProducer<String, String> producer = null;
    private ProducerRecord<String, String> record = null;

    public ProducerThread(KafkaProducer<String, String> producer, ProducerRecord<String, String> record) {
        this.producer = producer;
        this.record = record;
    }

    @Override
    public void run() {
        producer.send(record, (metadata, e) -> {
            if (null != e) {
                e.printStackTrace();
            }
            if (null != metadata) {
                System.out.println("消息发送成功 ："+String.format("offset: %s, partition:%s, topic:%s  timestamp:%s", metadata.offset(), metadata.partition(), metadata.topic(), metadata.timestamp()));
            }
        });
    }

}

多个线程通过同一个Producer对象发送消息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
package kafka.producer;

import kafka.OrderMessage;
import kafka.partition.PartitionUtil;
import org.apache.kafka.clients.producer.*;
import org.apache.kafka.clients.producer.ProducerConfig;

import java.util.Properties;
import java.util.UUID;
import java.util.concurrent.*;

/**
 * 线程池生产者
 *
 * @author tangj
 * @date 2018/7/29 20:15
 */
public class ProducerDemo {
    static Properties properties = new Properties();

    static String topic = "test";

    static KafkaProducer<String, String> producer = null;

    // 核心池大小
    static int corePoolSize = 5;

    // 最大值
    static int maximumPoolSize = 20;

    // 无任务时存活时间
    static long keepAliveTime = 60;

    // 时间单位
    static TimeUnit timeUnit = TimeUnit.SECONDS;

    // 阻塞队列
    static BlockingQueue blockingQueue = new LinkedBlockingQueue();

    // 线程池
    static ExecutorService service = null;

    static {
        // 配置项
        properties.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, "localhost:9092");
        properties.put(ProducerConfig.PARTITIONER_CLASS_CONFIG, PartitionUtil.class.getName());
        properties.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, "org.apache.kafka.common.serialization.StringSerializer");
        properties.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, "org.apache.kafka.common.serialization.StringSerializer");
        producer = new KafkaProducer<>(properties);
        // 初始化线程池
        service = new ThreadPoolExecutor(corePoolSize, maximumPoolSize, keepAliveTime, timeUnit, blockingQueue);
    }

    public static void main(String args[]) throws Exception {
        for (int i = 0; i < 6; i++) {
            service.submit(createMsgTask());
        }
    }


    /**
     * 生产消息
     *
     * @return
     */
    public static ProducerThread createMsgTask() {
        OrderMessage orderMessage = new OrderMessage();
        orderMessage.setId(UUID.randomUUID().toString());
        long timestamp = System.nanoTime();
        orderMessage.setCreateTime(timestamp);
        orderMessage.setRemake("rem");
        orderMessage.setsName("test");
        ProducerRecord<String, String> record = new ProducerRecord<String, String>(topic, timestamp + "", orderMessage.toString());
        ProducerThread task = new ProducerThread(producer, record);
        return task;
    }
}

序列化器

Kafka提供了一些序列化器，可以在org.apache.kafka.common.serialization中找到。

我们也可通过实现org.apache.kafka.common.serialization.Serializer<T>接口，并重写其中的byte[] serialize(String topic, T data)方法实现自定义序列化器。
